Pennsylvania K-4 'Mixed Configuration' Version

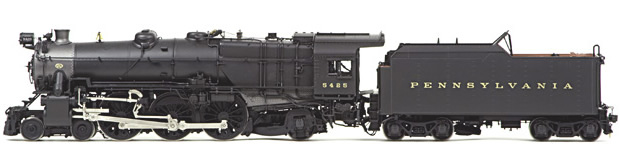

The above photo is of our 'mixed-configuration' version model with a 110P75a-2 tender.

The above photo is of our 'mixed-configuration' version model with a 110P75a-3 tender.

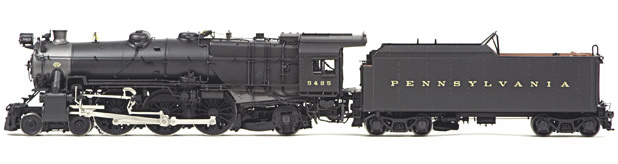

The above photo is of our 'mixed-configuration' version model with a 130P75-2 tender.


The major characteristics of the 'mixed-configuration' version as we have built them are listed below, in addition there are variations in piping, running board construction and the installation of major appliances. You will also notice that there are variations in paint and lettering schemes between all major versions:
  • Fabricated Frame
  • Original 17" Headlight Location
  • Original Top of Smokebox Generator Location
  • Drop Coupler Style Pilot
  • Running Board Mounted Train Control Box
  • 'Tombstone' Style Marker Lights on Smokebox
  • Manning Safety Valves
  • Whistle Steam Deflector
  • Automatic Blowdown System
  • Power Reverse Auxiliary Air Reservoir
  • External Steam Heat Line from Steam Dome
  • Standard Type Stoker
  • Spoke Style Drivers
  • 'Slab' Style Side Rods
  • 'Fluted' Style Main Rod
  • Gold Leaf 'Roman' Lettering (wide spacing)
(images courtesy of the Seman collection)

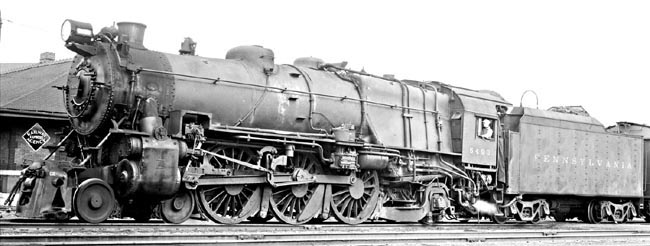

#5490 with 110P75a Tender
