Pennsylvania K-4 Tender Versions & Variations
We are producing three tender versions with a total of seven variations to accommodate different time periods and equipment configurations. The variations include changes in cistern hatch arrangements, marker lights, radiophone equipment and graphics style as well as color. See the individual notes for application of each specific variation.
(The drawings below have been modified to negate their usefulness for competitive design purposes - copyright © Kohs & Company, 2005) |
|

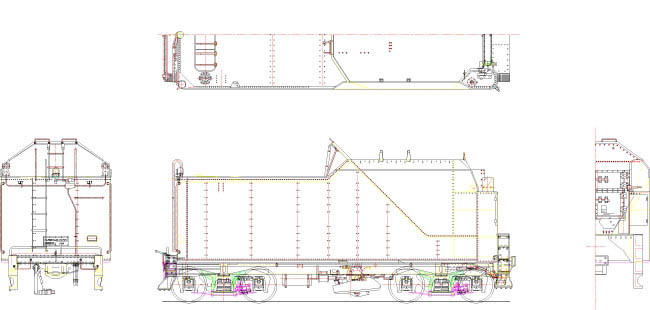

Version 110P70: used behind our 'As-built' and 'Early' versions when stokers had not been put into service.
|
|

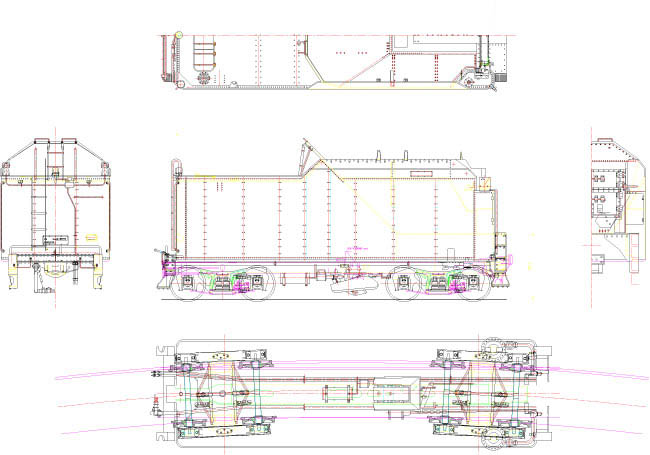

Version 110P75A-1: used behind our 'Pre-war' version.
|
|

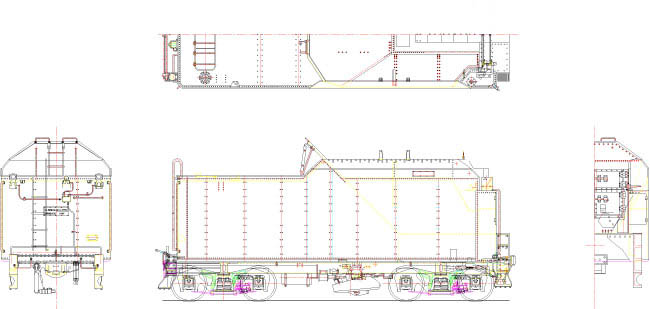

Version 110P75A-2: used behind our 'Post war' and 'Mixed configuration' versions.
|
|

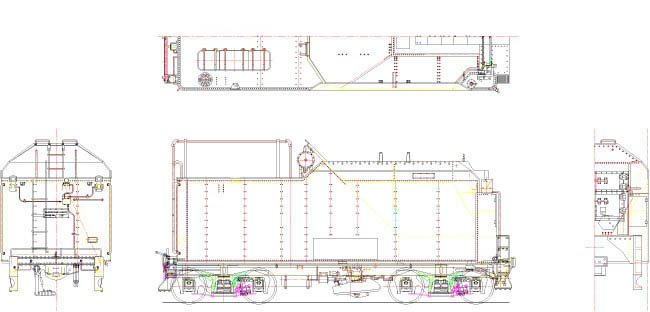

Version 110P75A-3: used behind our 'Post war' and 'Mixed configuration' versions equipped with radiophone.
|
|

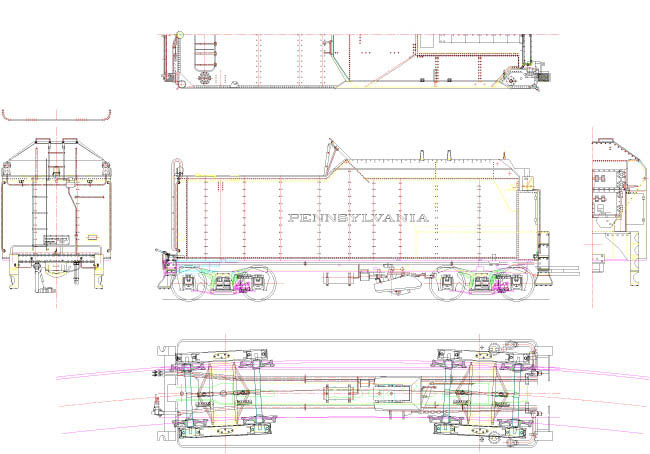

Version 130P75-1: used behind our late 'Pre-war' version.
|
|

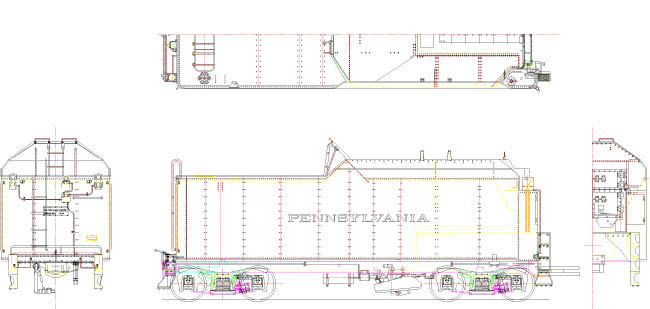

Version 130P75-2: used behind our 'Post war' and 'Mixed configuration' versions.
|
|

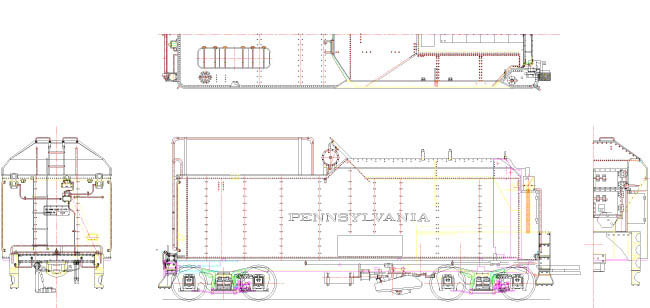

Version 130P75-3: used behind our K4sa version locomotive only.
|
